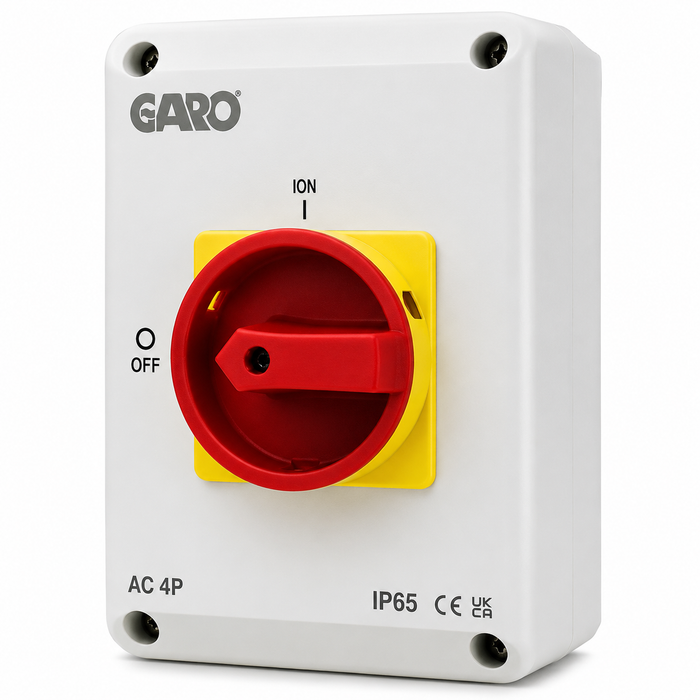

GARO SIAC420IP65 20A 4 Pole AC Isolator Switch | IP65 3P+N Safety Switch
$20.50
Sale price
$20.50
Regular price
$26.98
Skip to product information
GARO SIAC420IP65 20A 4 Pole AC Isolator Switch | IP65 3P+N Safety Switch
$20.50
Sale price
$20.50
Regular price
$26.98
Key Features:
- GARO SIAC420IP65
- 20A AC safety switch
- 4-pole switching
- 3P+N
- IP65-rated enclosure
- Interlocked operation
- Lockable rotary handle
- 3-position switching
- 4 × M20/25 cable knockouts
- 6–10mm terminals
- 4kW AC-3 rated power at 230V
- 5.5kW AC-3 rated power at 400V
- CE & UKCA certification
- BS EN 60947-3 standard
- Recommended terminal torque: 1.7Nm
- Surface/wall-mounted enclosure
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | GARO |
| Model | SIAC420IP65 |
| Product Type | AC Safety Switch |
| Current Rating | 20A |
| Number of Poles | 4 Pole |
| Switching | 3P+N |
| AC-3 Power @ 230V | 4kW |
| AC-3 Power @ 400V | 5.5kW |
| Rated Continuous Current | 20A |
| Terminals | 6–10mm |
| Cable Knockouts | 4 × M20/25 |
| IP Rating | IP65 |
| Interlocked | Yes |
| Standard | BS EN 60947-3 |
| Certification | CE, UKCA |
| Recommended Torque | 1.7Nm |
| Height | 125mm |
| Width | 100mm |
| Depth | 85mm |
