Pneumatic fitting with brass and blue components on a white background

Pipe - Pipe Barrel Union Brass Nut EPDM Flat Seal

Europress 316L S/S Pipe Union (Brass Nut) 15mm
$10.04
$10.04 $14.34
Skip to product information
Pneumatic fitting with brass and blue components on a white background
  • Pneumatic fitting with brass and blue components on a white background
  • Technical drawing of a mechanical component with dimensions labeled
  • Pneumatic fitting with brass and blue components on a white background
  • Technical drawing of a mechanical component with dimensions labeled
Pipe - Pipe Barrel Union Brass Nut EPDM Flat Seal

Pipe - Pipe Barrel Union Brass Nut EPDM Flat Seal

$10.04
$10.04 $14.34
size

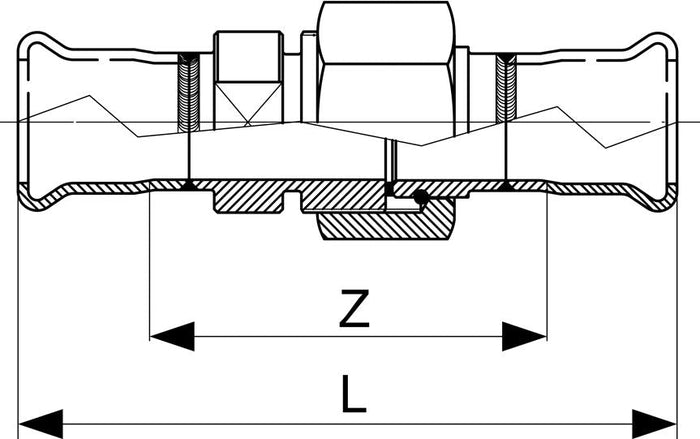

The Pipe - Pipe Barrel union provides disconnection  capacity at any point in the pipework. The 'wetted' surfaces are 316L stainless steel with a brass union nut for a more economical fitting. A flat EPDM seal is standard with FPM or HNBR available as options.  The pipe diameter is D and the overall length is L with Z being the finished distance between the two ends of the pipe.
